The XIAO series from Seeed Studio are impressively small development boards, with a compact form factor that fits in the palm of your hand. Though tiny, the XIAO ESP32S3 packs a powerful punch, featuring a 240MHz Xtensa 32-bit LX7 dual-core processor capable of WiFi and BLE 5.0 connectivity. Its low-power profile of 14μA in deep-sleep mode and lithium battery charging support make it ideal for IoT, smart homes, wearables, robotics and more.



Feature

• Powerful MCU Board: Incorporate the ESP32S3 32-bit, dual-core, Xtensa processor running at up to 240MHz, mounted multiple development ports, Arduino / MicroPython supported
• Outstanding RF performance: supports 2.4GHz WiFi and BLE 5.0 dual wireless communication, support 100m remote communication when connected with U.FL antenna
• Elaborate Power Design: lithium battery charge management capability, offer 4 power consumption model which allows for deep sleep mode with power consumption as low as 14μA

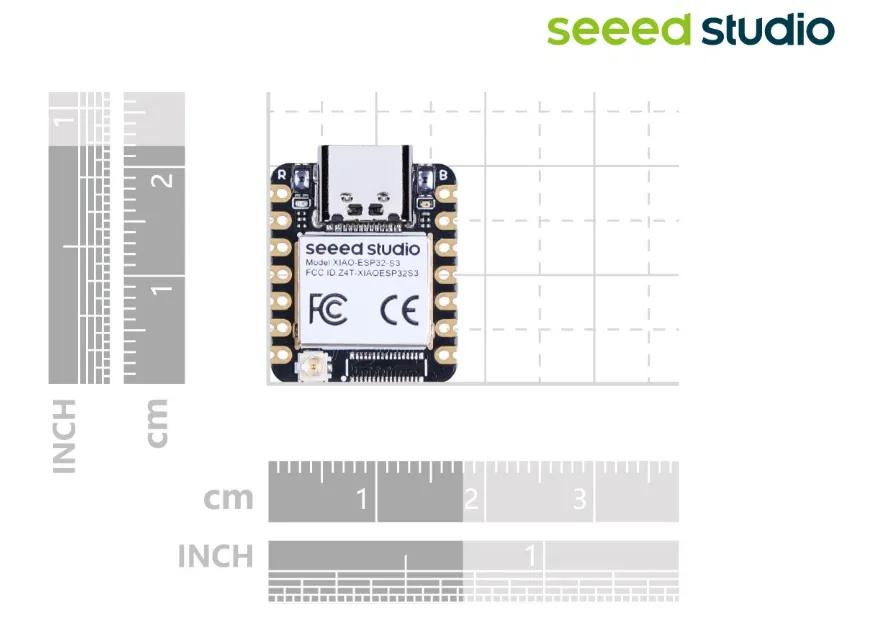

• Thumb-sized Compact Design: 21 x 17.5mm, adopting the classic form factor of XIAO, suitable for space limited projects like wearable devices
• Perfect for Production: Breadboard-friendly & SMD design, no components on the back

Description

XIAO ESP32S3 is a high-performance board powered by Expressif ESP32-S3R8 chip. With support for 2.4GHz WiFi and low-power Bluetooth® BLE 5.0 dual-mode wireless communication, this board is perfect for high-performance, low-power IoT applications.

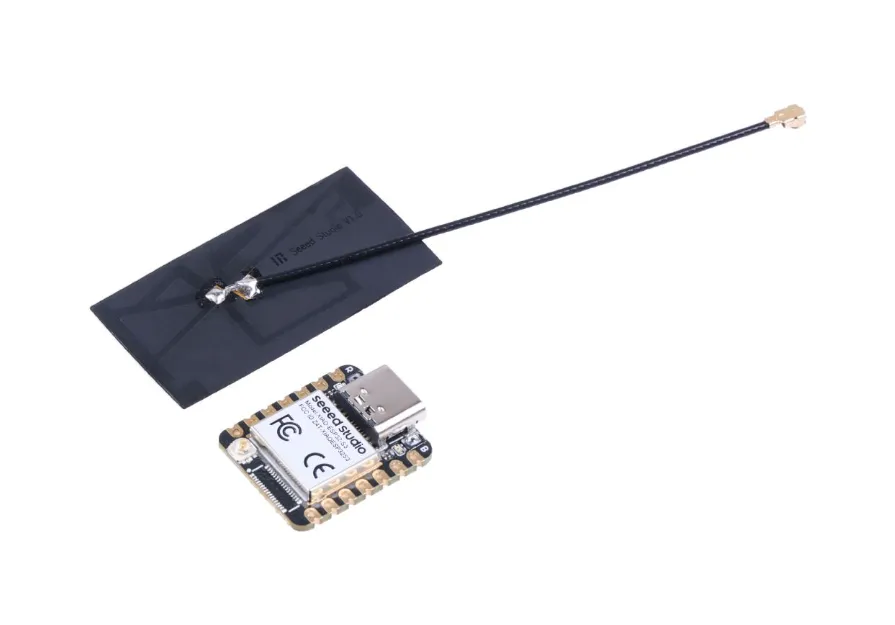

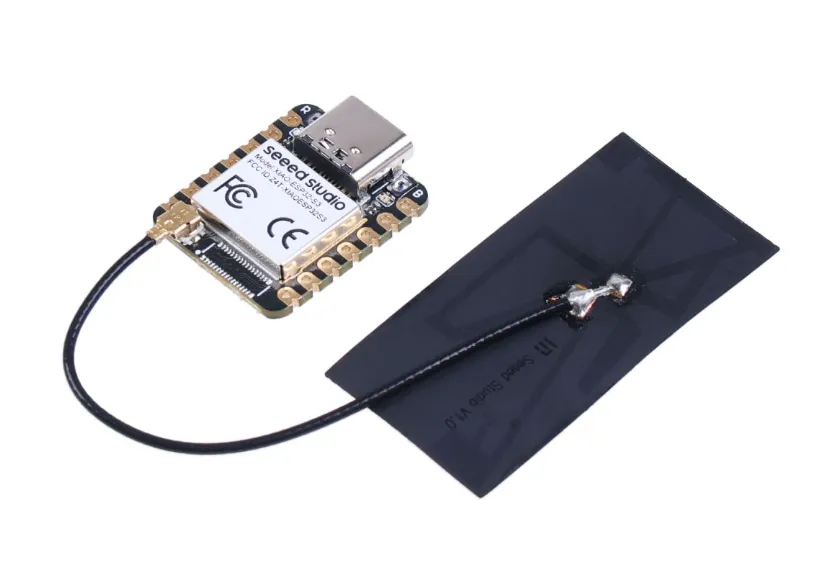

When connected with the U.FL antenna, the remote communication distance and reach up to 100m.

Equipped with a powerful Xtensa® 32-bit LX7 dual-core processor running at up to 240MHz, 8MB PSRAM, and 8MB Flash, XIAO ESP32S3 is designed to handle multi demanding tasks with ease.

Additionally, XIAO ESP32S3 supports lithium battery charging management and allows for deep sleep mode with power consumption as low as 14μA. With 4 adjustable power modes, XIAO ESP32S3 can balance communication distance, data rate, and power consumption to meet the needs of various application scenarios.

At just 21 x 17.5mm, XIAO ESP32S3 is designed with the classic thumb-sized form factor, making it perfect for wearable devices. Its breadboard-friendly and surface-mount design makes it ideal for production, with all SMD components on a single-sided board for ease of mass production.

Starter Kit with free Course for all Electronics Neophytes and Enthusiasts

Seeed Studio has provided the along with for you quickly get started with microcontrollers and electronics, regarding all the Seeed Studio XIAO boards, promising you a great learning experience.

Not only programming but also electronics knowledge is not required, you will be taken step by step, from understanding the basic concepts to exercising the simple projects individually, finally being able to build complex, interesting, wearable projects on your own, owing a practical electronic product prototype from the course.

You can have access to the by connecting it to the compatible . We have developed more than , covering a wide range of applications that can fulfill various needs. Get started and explore the infinite possibilities of the Seeed Studio XIAO series!



Application

• Internet of Things
• Wearable devices
• Smart Homes
• Robotics
• Health monitoring
• Education
• Low-Power(LP) networking
• Rapid prototyping

Specification

Parameter	Seeed Studio XIAO ESP32S3	Seeed Studio XIAO ESP32C3
Processor	ESP32-S3R8	ESP32-C3 SoC
	Xtensa LX7 dual-core, 32-bit processor running up to 240 MHz	RISC-V single-core 32-bit chip processor with a four-stage pipeline that operates at up to 160 MHz
Wireless	Complete 2.4GHz Wi-Fi subsystem	Complete 2.4GHz Wi-Fi subsystem
	Bluetooth 5.0/ Bluetooth Low Energy(BLE)	Bluetooth 5.0/ Bluetooth mesh
On-chip Memory	8M PSRAM & 8MB Flash	400KB SRAM & 4MB Flash
Interface	1x UART, 1x IIC, 1x IIS, 1x SPI,11x GPIO(PWM), 9x ADC, 1x User LED, 1x Charge LED	1x UART, 1x IIC, 1x IIS, 1x SPI,11x GPIO(PWM), 4x ADC
	1x Reset button, 1x Boot button	1x Reset button, 1x Boot button
Dimensions	21 x 17.5mm	21 x 17.5mm
Power	Input voltage (Type-C): 5V Input voltage (BAT): 4.2V	Circuit operating voltage:
	Circuit operating Voltage (ready to operate): - Type-C: - BAT:	Charging current: 35mA/100mA
	Charging battery current: 50mA	Input voltage (VIN): 5V
Low Power Consumption Model	Modem-sleep Model: ~ 25.000 mA Light-sleep Model: ~ 2.000 mA Deep Sleep Model: >14 μA	Deep Sleep Model: >44 μA
Wi-Fi Enabled Power Consumption	Active Model: ~ 100 mA	Active Model: <75 mA Modem-sleep Model: <25 mA Light-sleep Model: <4 mA
BLE Enabled Power Consumption	Active Model: ~ 85 mA	Modem-sleep Model: <27 mA Light-sleep Model: <10 mA
