Name: Seeed Studio XIAO ESP32S3 Sense
SKU: 268655

The Seeed Studio XIAO Series of development boards are incredibly small, with a size that is equivalent to that of a thumb. These boards have a similar hardware structure and are given the code name "XIAO," which represents their powerful and compact features.

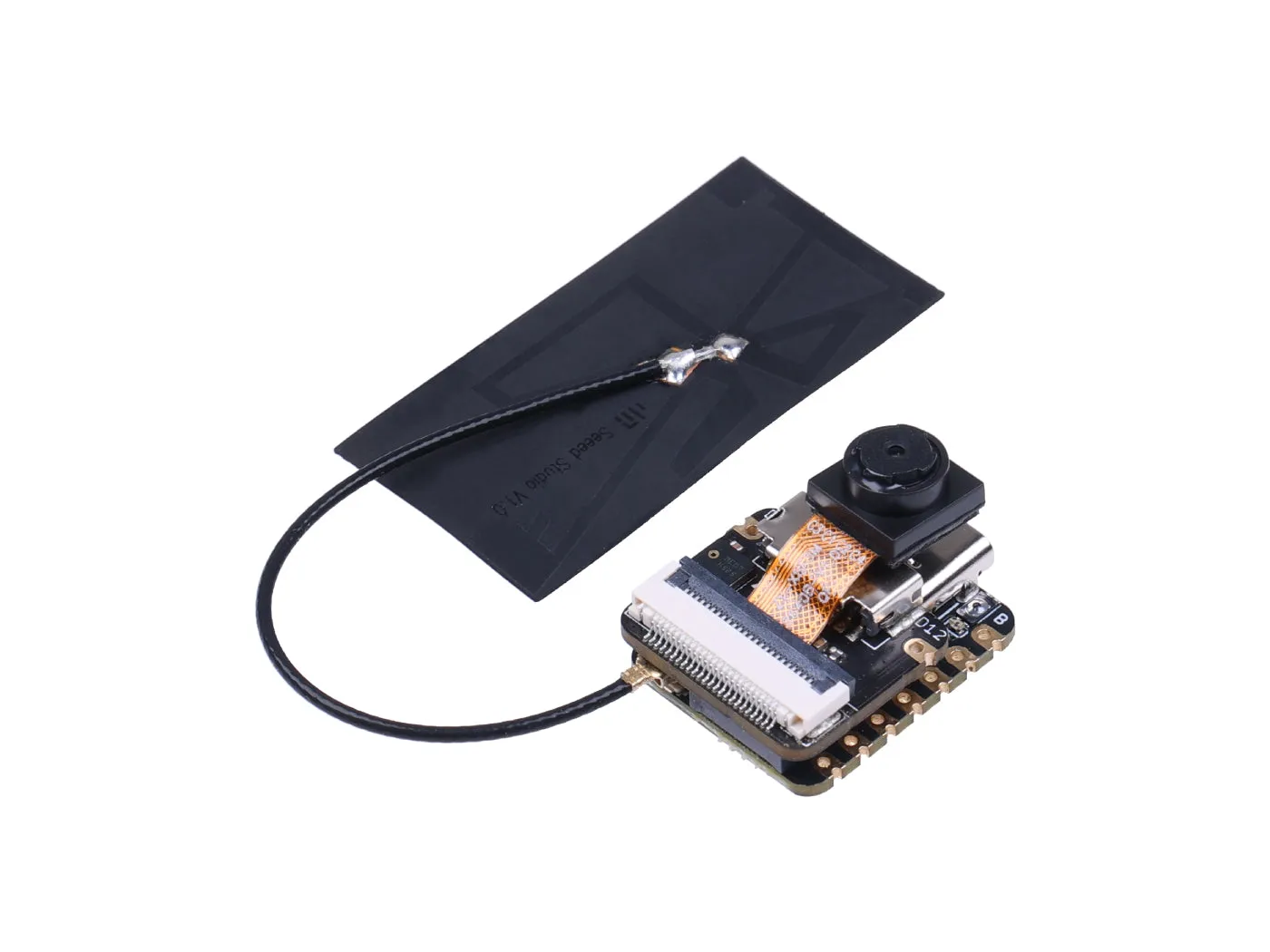

The Seeed Studio XIAO ESP32S3 Sense is a unique development board that includes a camera sensor, digital microphone, and SD card support. With its powerful embedded ML computing capabilities and photography features, this board is an excellent tool for those looking to dive into intelligent voice and vision AI.

Feature

Powerful MCU Board: Incorporate the ESP32S3 32-bit, dual-core, Xtensa processor chip operating up to 240 MHz, mounted multiple development ports, Arduino / MicroPython supported
Advanced Functionality: Detachable OV2640 camera sensor for 1600*1200 resolution, compatible with OV5640 camera sensor, integrating additional
Great Memory for more Possibilities: Offer 8MB PSRAM and 8MB FLASH, supporting SD card slot for external 32GB FAT memory

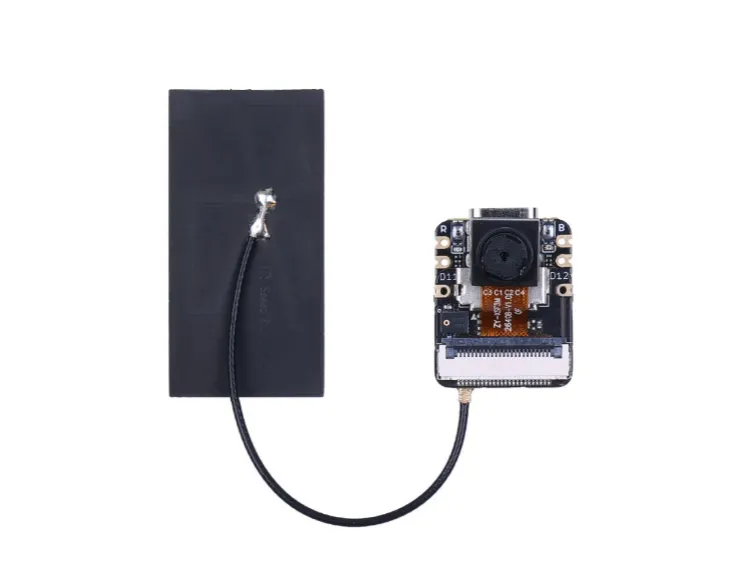

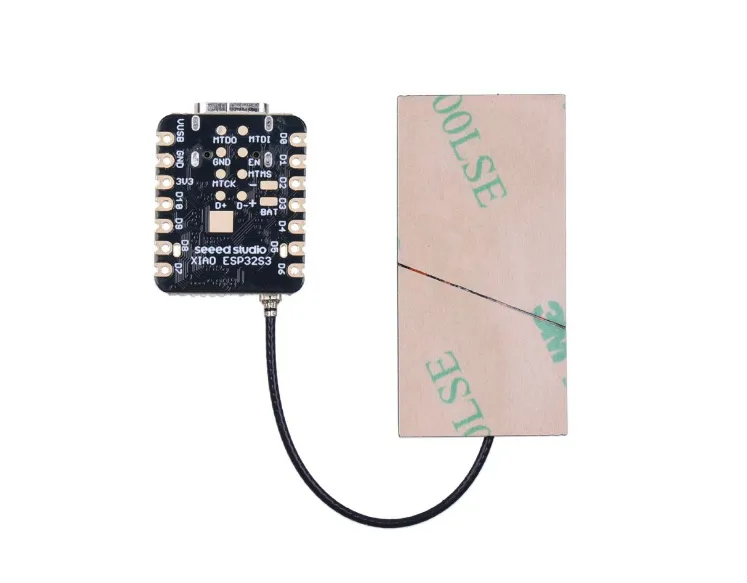

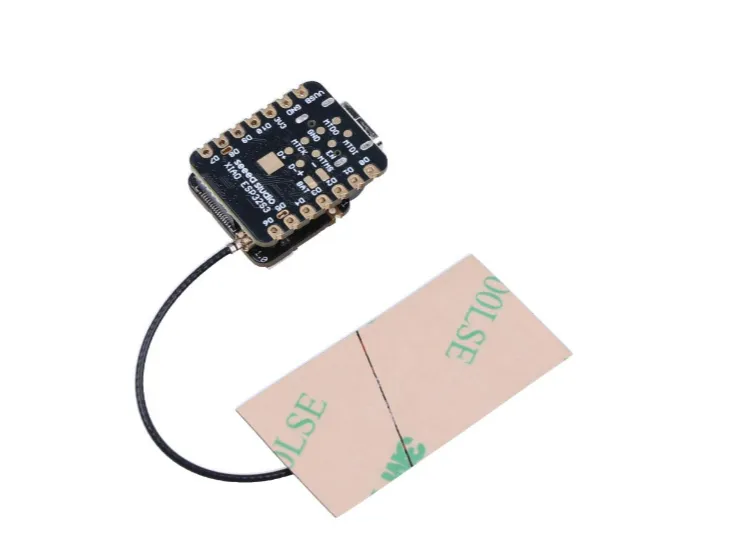

Outstanding RF performance: Support 2.4GHz Wi-Fi and BLE dual wireless communication, support 100m remote communication when connected with U.FL antenna
Thumb-sized Compact Design: 21 x 17.5mm, adopting the classic form factor of XIAO, suitable for space-limited projects like wearable devices

Description

Seeed Studio XIAO ESP32S3 Sense is built around a highly-integrated, Xtensa processor ESP32-S3R8 SoC, which supports 2.4GHz WiFi and low-power Bluetooth® BLE 5.0 dual-mode for multiple wireless applications. It has lithium battery charge management capability.

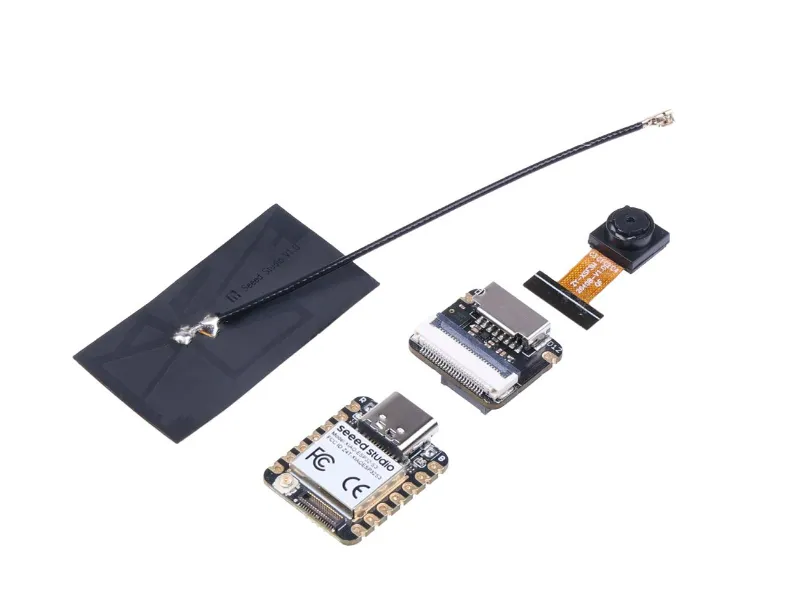

As the advanced version of Seeed Studio XIAO ESP32S3, this board comes with a plug-in OV2640 camera sensor for displaying full 1600*1200 resolution. The base of it is even compatible with OV5640 for supporting up to 2592*1944 resolution. The digital microphone is also carried with the board for voice sensing and audio recognition.

With powerful SoC and built-in sensors, this development board has 8MB PSRAM and 8MB FLASH on the chip, an additional SD card slot for supporting up to 32GB FAT memory. These allow the board for more programming space and bring even more possibilities into embedded ML scenarios.

Being a number to the Seeed Studio XIAO family, the board deservedly maintains the classic thumb-sized form-factor design and elegant productization of single-sided components mounting.

Starter Kit with free Course for all Electronics Neophytes and Enthusiasts

Seeed Studio has provided the Grove Starter Kit along with free and detailed courses for you quickly get started with microcontrollers and electronics, regarding all the Seeed Studio XIAO boards, promising you a great learning experience.

Not only programming but also electronics knowledge is not required, you will be taken step by step, from understanding the basic concepts to exercising the simple projects individually, finally being able to build complex, interesting, wearable projects on your own, owing a practical electronic product prototype from the course.

You can have access to the Seeed Studio Grove ecosystem by connecting it to the compatible Seeed Studio XIAO expansion board. We have developed more than 400 Grove modules, covering a wide range of applications that can fulfill various needs. Get started and explore the infinite possibilities of the Seeed Studio XIAO series!

Application

Image processing
Speech Recognition
Video Monitoring
Wearable devices
Smart Homes
Health monitoring
Education
Low-Power(LP) networking
Rapid prototyping

Specification

Parameter	Seeed Studio XIAO ESP32S3 Sense
Processor	ESP32-S3R8
Processor	Xtensa LX7 dual-core, 32-bit processor that operates at up to 240 MHz
Wireless	Complete 2.4GHz Wi-Fi subsystem
Wireless	BLE: Bluetooth 5.0, Bluetooth mesh
Built-in Sensors	OV2640 camera sensor for 1600*1200
Built-in Sensors	Digital Microphone
Memory	On-chip 8M PSRAM & 8MB Flash
Memory	Onboard SD Card Slot, supporting 32GB FAT
Interface	1x UART, 1x IIC, 1x IIS, 1x SPI,13x GPIO(PWM), 9x ADC, 1x User LED, 1x Charge LED
Interface	1x Reset button, 1x Boot button
Dimensions	21 x 17.5mm
Power	Input voltage (Type-C): 5V Input voltage (BAT): 4.2V
	Circuit operating Voltage (ready to operate): - Type-C: - BAT:
	Charging battery current: 50mA
Low Power Consumption Model (without camera sensor)	Modem-sleep Model: ~ 25.000 mA Light-sleep Model: ~ 2.000 mA Deep Sleep Model: >14 μA
Wi-Fi Enabled Power Consumption (without camera sensor)	Active Model: ~ 100 mA
BLE Enabled Power Consumption (without camera sensor)	Active Model: ~ 85 mA

Note

There are two additional GPIO on the plug-in camera sensor board linking to the microphone. If you want to apply these two external IO, the microphone should not be used at the same time.
