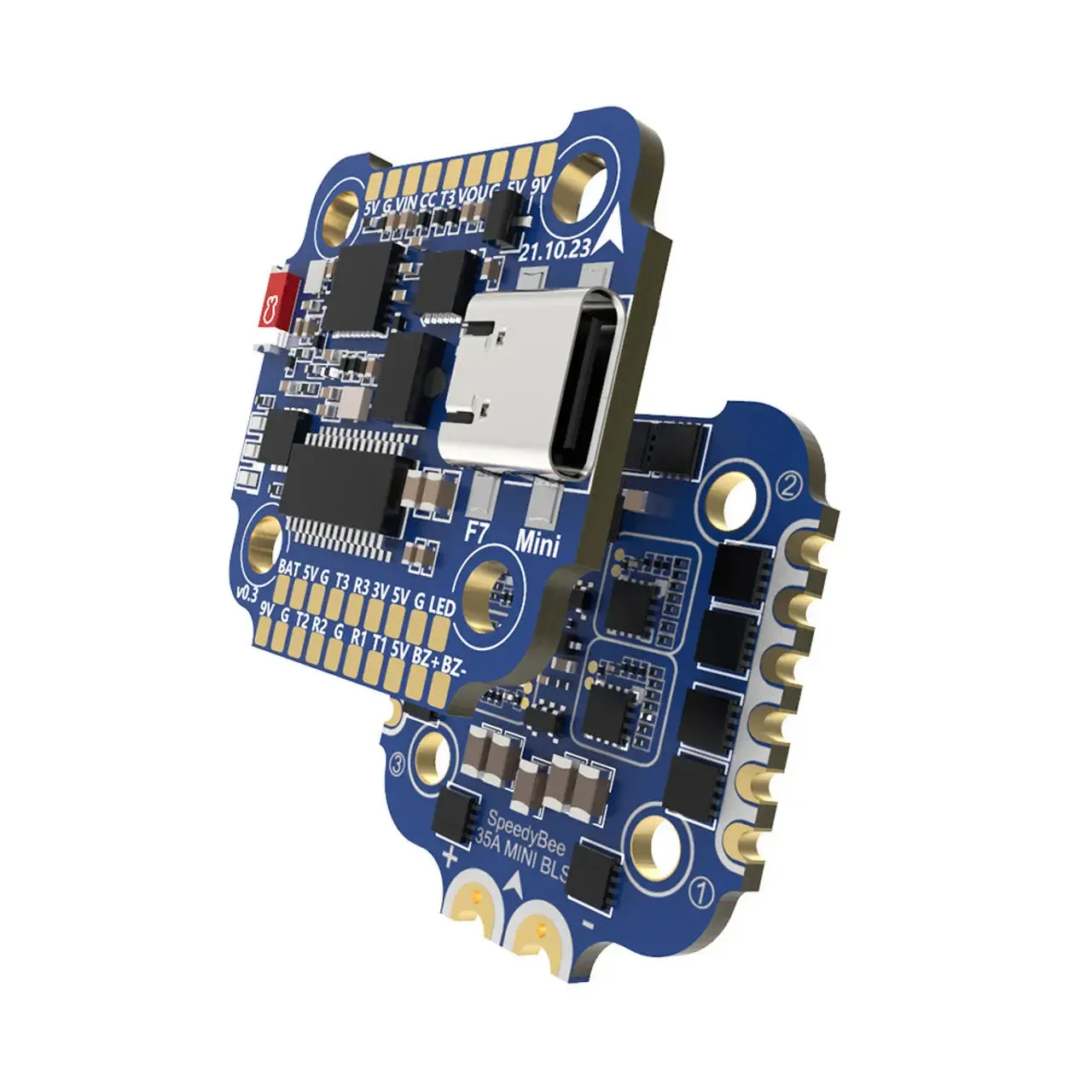

SpeedyBee F7 Mini 35A Stack

Tune FC ESC without a PC for
your 2-4” quads

Wireless full-featured flight controller tuning

Wireless full-featured BLHeli_S ESC tuning

High-performance F7 flight controller CPU

Real 35A BLHeli_S DSHOT600 ESC

Built-in Bluetooth 4.0 BLE chip

Too difficult to access the
USB port on your compact
2-4″ quad? Say goodbye!

It’s time to say goodbye to this trouble! With this Bluetooth
stack, you don’t need to connect your quad to the PC for
FC and even ESC tuning, everything can be done
wirelessly in the SpeedyBee app.

Tune Flight controller
and ESC wirelessly!

Power the quad, connect the SpeedyBee app via
Bluetooth, configure the UART Ports,PID,OSD and
every other settings on this flight controller.Also,
every parameter of the BLHeli_S ESC in this
stack can be set via the app.

Change motor directions
wirelessly!

With this stack, when you finish your build, connect to the
SpeedyBee app, change the motor directions just in
a few simple steps. Then take off.

Support DJI Digital
Video transmitter.

The flight controller has two
independent 9V 2A BEC and
5V 2A BEC, supports various
analog image transmissions
above 5V, and also supports
DJI Air Unit / RunCam Link / Vista.

Real 35A ESC, no false labeling!

6-layer 2oz PCB plus optimized circuit design equals stable
and strong current output. The four-channel continuous
140A output can reach 30 seconds.

*Test result comes from SpeedyBee laboratory.

M2 or M3? Why not both?

Have you ever experienced that the stack
holes of your frame did not fit the stack
you got? This stack is perfectly compatible
with M2/M3 screws. What’s more,
two sets of M2 and M3 screws
silicone grommets are included
in the package!

Dimensions

Wiring Diagram

Specifications

Product Name	SpeedyBee F7 Mini Specs
MCU	STM32F722
IMU(Gyro)	BMI270 for current batches; MPU6000 for old batches before May 2022.
USB Port Type	Type-C
Barometer	N/A
OSD Chip	AT7456E chip
BLE Bluetooth	Supported. Used for Flight Controller configuration (MSP should be enabled with Baud rate 115200 on UART 6)
WIFI	Not supported
Flash FC Firmware Wirelessly	Not supported. Please update firmware for this FC on the PC
Download/Analyze Blackbox	Not supported. Please download and analyze Blackbox data on the PC
DJI Air Unit Soldering Pads	Supported
Flash(for BlackBox)	8MB
Current Sensor	Supported, Scale=250 Offset=-500
BetaFlight Camera Control Pad	Yes(CC pad)
Power Input	3S – 6S Lipo
5V Output	6 groups of 5V output, five 5V pads and 1 BZ pad( used for Buzzer). The total current load is 2.5A.
9V Output	2 groups of 9V output, the total current load is 2A.
3.3V Output	Supported. Up to 500mA current load.
ESC Signal Pads	M1 – M4
UART	Full UART * 3(UART1, UART2, UART3)
ESC Telemetry UART	R4(UART4)
I2C	Not supported
LED Pad	Used for WS2812 LED
Buzzer	BZ and BZ- pad used for 5V Buzzer
BOOT Button	Used to enter DFU mode
RSSI Input	Not supported
SmartPort	Use any TX pad of UART for the SmartPort feature.
Supported Flight Controller Firmware	BetaFlight(Default)
Firmware Target Name	SPEEDYBEEF7MINIV2 for current batches(Gyro: BMI270); SPEEDYBEEF7MINI for old batches(Gyro: MPU6000) before May 2022.
Mounting	20 x 20mm, 3.5mm hole diameter
Dimension	30 x 30 x 7.5mm
Weight	5.7g

Product Name	SpeedyBee 35A BLHeli_S Mini 4-in-1 ESC Specs
Firmware	BLHeli_S JH40
Continuous Current	35A * 4
Burst Current	45A(5seconds)
ESC Protocol	DSHOT300/600
Power Input	3-6S LiPo
Power Output	VBAT
ESC Telemetry	Not supported
Current Sensor	Support (Scale=250 Offset=-500)
Mounting	20 x 20mm, 3.6mm hole diameter
Dimension	35 * 35 * 5.5mm
Weight	7g
